SẢN PHẨM
- Tổ hợp Lưu lượng kế dạng phao
- Giá:Liên hệ
- Xuất xứ:Finland
- Lượt xem:4170
Overview

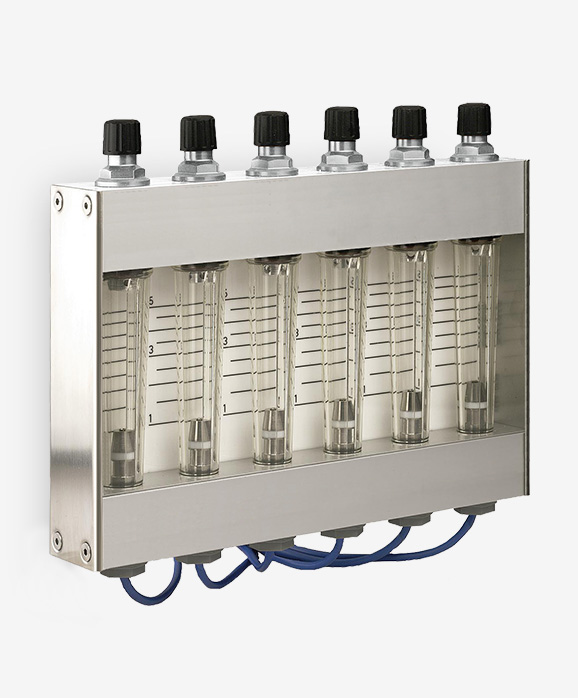

Variable area flow meter Model VE is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It has a flow adjustment valve on the outlet. It comes in a range of different options and offers a choice of end blocks: aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are sealing and cooling water, lubrication oil and gas flow measurements.
| Technical data | |
| Number of flow tubes | 1 - 7 aluminium end blocks, 1 - 3 AISI 316 and nylon end blocks |
| Flow range, water (+20°C) | Min. 0.4 - 2 l/min / Max. 5 - 30 l/min |
| Flow range, air (+20°C/103,3 kPa) | Min. 15 - 70 Nl/min / Max. 150 - 700 Nl/min |
| Flow tube | Grilamid (PA-12), *PES |
| End blocks | Aluminium, AISI 316 or Nylon |
| *Alarm sensor | ILK-M12-FR (10 - 55 VDC, 2-wire, NO/NC), ILK-M12-N (Namur, DIN 19234) |
| *) Special construction on request |
|
