  • Metal tube flowmeter
  • Giá:
    Liên hệ
  • Xuất xứ:
    Phần Lan
  • Lượt xem:
    2314

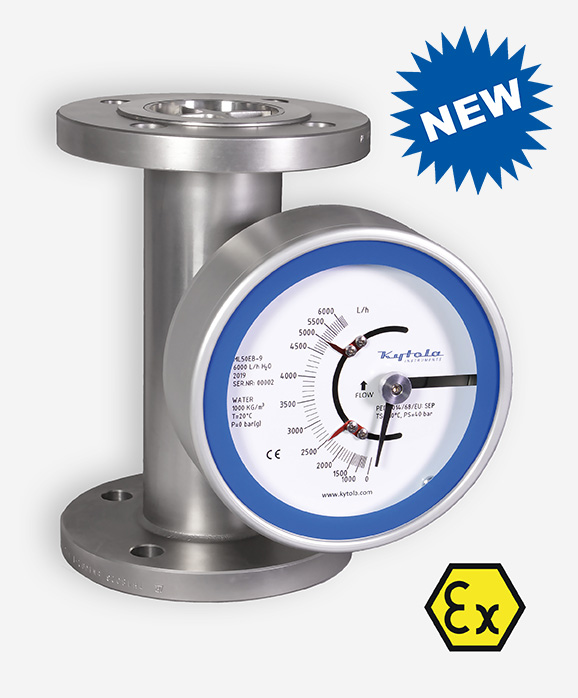

Metal Tube flow meter model ML s designed for medium and large liquid flows in rough conditions. It is compatible with a wide range of liquids. Reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float.The ML meter withstands high pressure and has excellent temperature resistance. Typical applications are found in chemical and petrochemical industries, power plants and general flow measurement.

Overview

Metal Tube flow meter model ML s designed for medium and large liquid flows in rough conditions. It is compatible with a wide range of liquids. Reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float.The ML meter withstands high pressure and has excellent temperature resistance. Typical applications are found in chemical and petrochemical industries, power plants and general flow measurement.

Technical data
Flow tube     Stainless Steel AISI 316L
Connectors Stainless Steel AISI 316L
Float Stainless Steel AISI 316L
Display housing Aluminium (*Stainless Steel AISI 316L)
Housing window Borosilicate glass
Seals Viton®
Pressure class DN25 – DN50 flanges 40 bar
ANSI/ASME flanges 150 or 300 lbs
JIS flanges 10 or 20 kg/cm²
Maximum temperature +110°C without alarm sensors
+100°C with NAMUR alarm sensors
+80°C with PNP/NPN alarm sensors
Connections DIN/EN flanges
ANSI/ASME flanges
JIS flanges
G/NPT/Rc female threads
Weight   3.7 - 8.9 kg depending on model (aluminium display/housing, stainless steel display/housing add 1,6 kg).
Accuracy ±5% F.S. (H₂O at +20°C)
*) Special construction on request
