Flow rate (min./max.):
Oil: 0.02 / 10 L/min, 150 cSt
Overview

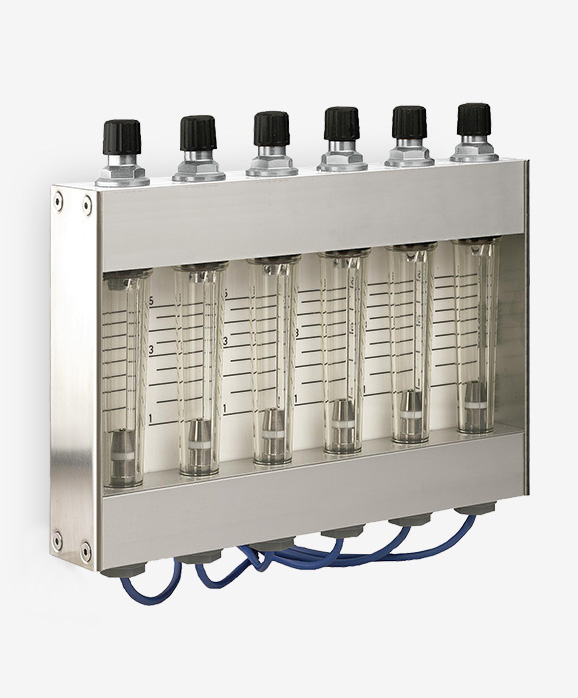

Variable area flow meter Model VExA is a sturdy industrial flow meter with heavy-duty impact resistant polymer flow tubes. It has flow adjustment valves on the outlet and a quick-change tube feature. It comes in a range of different options. It is a reliable instrument for measuring and monitoring lubrication oil flows.
Technical data | |
Number of flow tubes | 1 - 7 |
Flow range, oil, 150 cSt | Min. 0.02 - 0.35 l/min / Max. 1.5 - 10 l/min |
Flow tube | Grilamid (PA-12), *PES |
End blocks | Aluminium |
*Alarm sensor | ILK-M12-FR (10 - 55 VDC, 2-wire, NO/NC) ILK-M12-N (Namur, DIN 19234) |
*) Special construction on request |
