Flow rate (min./max.):
Oil: 0.5 / 170 L/min, 150 cSt
Overview

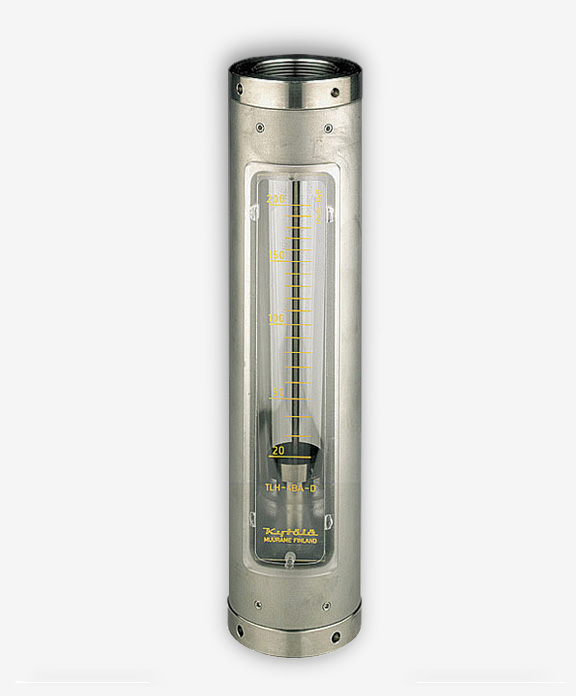

Variable area flow meter Model TLA is a sturdy industrial flow meter. It has a stainless steel AISI 316 / aluminium body with a heavy-duty impact resistant polymer flow tube. It is a reliable instrument for measuring and monitoring lubrication oil flows.
Technical data | |
Flow range, oil, 150 cSt | Min. 0.5 - 32 l/min / Max. 12 - 170 l/min |
Connections | BSP 2" or NPT 2" |
Max. pressure | 20 bar |
Max. temperature | 80°C (*120°C) |
Weight | 3,3 kg |
Connectors | Aluminium |
Body | AISI 316 |
Flowtube | Grilamid (PA-12) (*PES) |
Float | AISI 329 or PTFE (depending on range) |
Seals | Nitrile (* Viton®) |
*Alarm sensor ( + sensor holder ) | ZILPTLD34FB ( 20 - 250 VAC/DC, 2 -wire, NO / NC ) ZILPTLD34FR ( 10 - 55 VDC, 2 -wire, NO / NC ) |
*) Special construction on request |
