Flow rate (min./max.):
Water: 7.5 / 400 L/min
Air: 300 / 12000 NL/min at +20C / 101,3 kPa
Overview

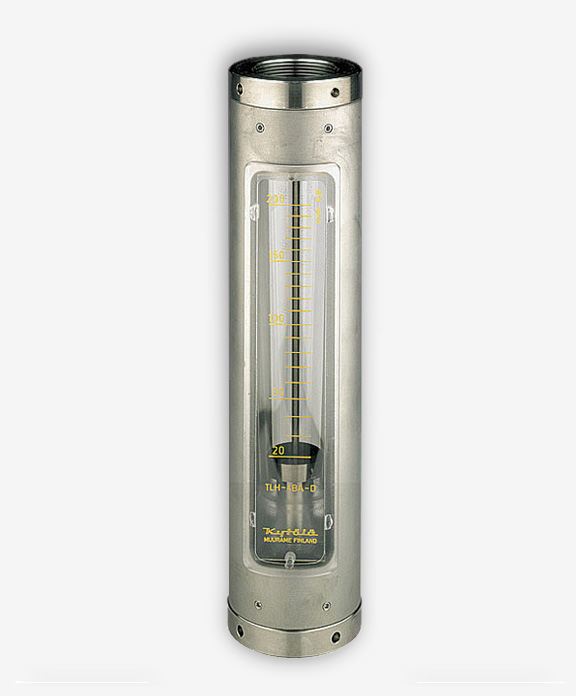

Variable area flow meter Model TL is a sturdy industrial flow meter. It has a stainless steel AISI 316 or aluminium body with a heavy-duty impact resistant polymer flow tube. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are sealing water measurement for vacuum pumps, lubrication oil measurement for gear boxes, flush water applications and gas flow measurements.
Technical Data | |||
TLA | TLH | TLFH | |
Connections | BSP 2" / NPT 2" | BSP 2" / NPT 2" | DN 50 / ANSI 2" |
Max. pressure | 20 bar | 20 bar | 16 bar |
Max. temperature | 80°C (*120°C) | 80°C (*120°C) | 80°C (*120°C) |
Weight | 3.3 kg | 4.5 kg | 6.6 kg |
Connectors | Aluminium | AISI 316 | AISI 316 |
Body | AISI 316 | AISI 316 | AISI 316 |
Flowtube | Grilamid (PA-12) (*PES) | Grilamid (PA-12) (*PES) | Grilamid (PA-12) (*PES) |
Float | AISI 329 or PTFE (depending on range) | AISI 329 or PTFE (depending on range) | AISI 329 or PTFE (depending on range) |
Seals | Nitrile (* Viton®, EPDM) | Nitrile (* Viton®, EPDM) | Nitrile (* Viton®, EPDM) |
Accuracy | ±5% F.S. (H2O, +20°C) | ±5% F.S. (H2O, +20°C) | ±5% F.S. (H2O, +20°C) |
*Alarm sensor (+ sensor holder) | ZILPTLD34FB (20 - 250 VAC/DC, 2-wire, NO/NC)
ZILPTLD34FR (10 - 55 VDC, 2-wire, NO/NC) |
||
*) Special construction on request |
