Flow rate (min./max.):
Water: 5 / 80 L/min
Air: 150 / 2200 NL/min at +20C / 101,3 kPa
Overview

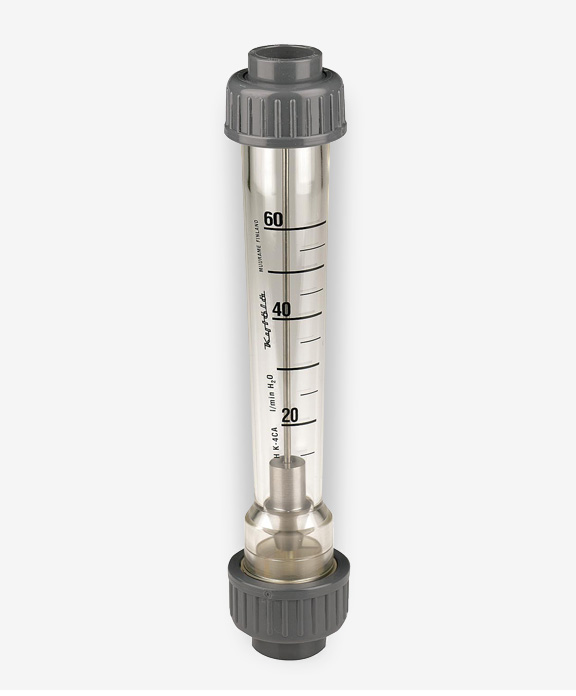

Variable area flow meter Model HK is an industrial flow meter. It has an injection molded impact resistant flow tube with threaded or socket type connections. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are reverse osmosis, water treatment plants, chemical and process industries, agricultural applications and flow measurement in PVC piping.
Technical data | |
Connection size | BSP/NPT 3/4" or 25 mm |
Weight | 280 g |
Max. pressure | 10 bar / 20°C (* 10 bar / 80°C) |
Max. temperature | 50°C / 2 bar (* 120°C / 2 bar) |
Flow tube | Grilamid (PA-12) (* PES) |
Connectors | PVC (* AISI 316, PVDF) |
Float | AISI 329 |
Seals | Nitrile (* Viton®, EPDM) |
Accuracy | ±5% F.S. (H2O, +20°C) |
