Flow rate (min./max.):
Air: 0.2 / 7.5 NL/min at +20C / 101,3 kPa
Overview

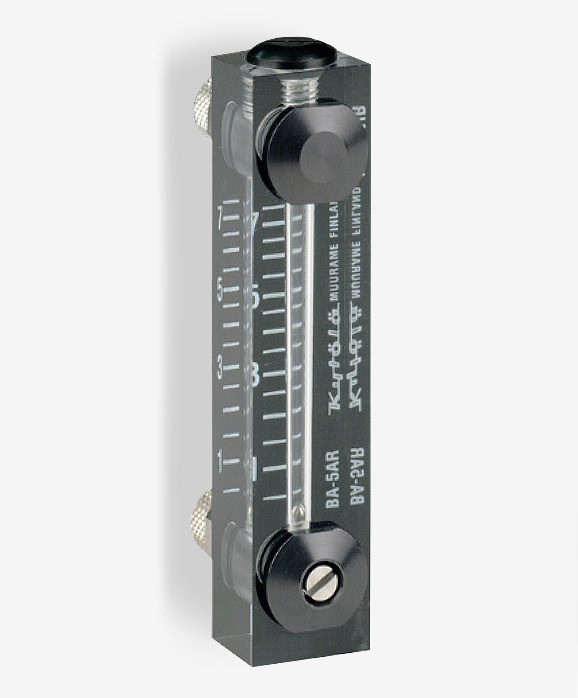

Variable area flow meter Model BA is a high quality acrylic flow meter. It is designed for monitoring of low air flow rates. It has a flow adjustment valve and rapid fittings for plastic hose. Typical applications are measuring gas flows for analyzers and air purging for enclosures and differential pressure measurements.
Technical data | |
Body | Acrylic (PMMA) |
Valve housing | Aluminium |
Valve spindle | AISI 316 |
Seals | Nitrile (* Viton®, EPDM) |
Plug | Nylon |
Float | AISI 316 |
Accuracy | ± 10 % (F.S) |
Max. pressure | 10 bar |
Max. temperature | 75°C |
Connections | Compression fitting for o.d. 6mm / i.d. 4mm hose |
Weight | 60g |
*) Special construction on request |
