  • Hệ thống đo lưu lượng dầu bôi trơn
  • Giá:
    Liên hệ
  • Xuất xứ:
    Finland
  • Lượt xem:
    2887
Hệ thống đo lưu lượng dầu Model ExK Flow rate (min./max.): Water: 0.002 / 2.5 L/min Air: 0.1 / 90 NL/min at +20C / 101,3 kPa

Overview

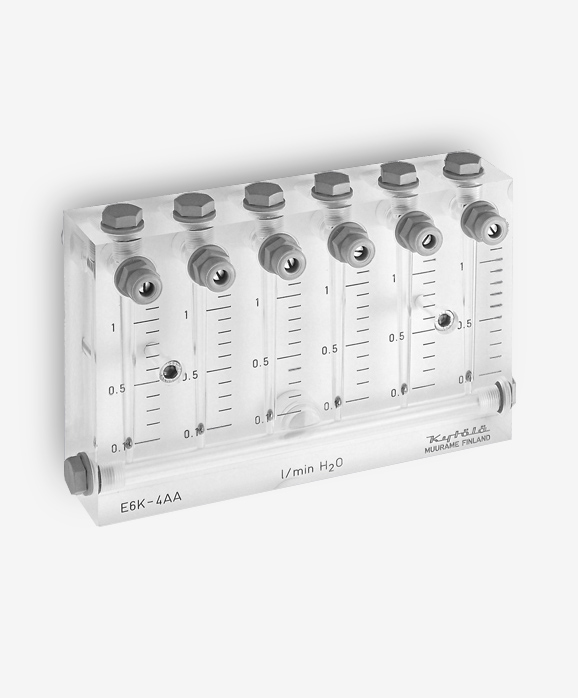

Variable area flow meter Model ExK is a high quality acrylic multi-tube flow meter. It is a reliable and easy to read instrument for measuring and monitoring liquid and gas flows. It is available in single tube and multi-tube versions with many options. Model ExK is equipped with flow adjustment valves on the outlet and is also available in customized designs. Typical applications are water and air purging, shield gas measurements and other gas and liquid measurements.

Technical data
Number of flow tubes 1 - 12
Flow range, water (+20°C) Min. 2 - 16 ml/min / Max. 0.5 - 2.5 l/min
Flow range, air (+20°C/103,3kPa) Min. 0.1 - 0.8 Nl/min / Max. 10 - 90 Nl/min
Body   Acrylic (PMMA)
