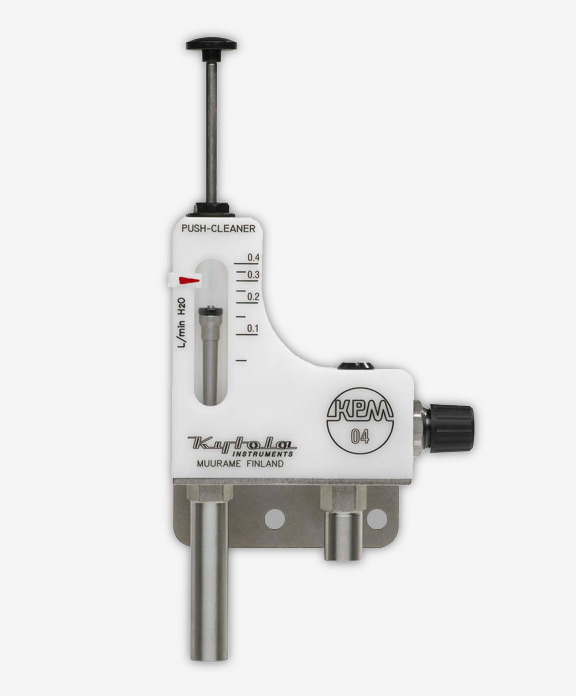

ĐỒNG HỒ ĐO LƯU LƯỢNG NƯỚC ÉP CHÈN Model KPM
Flow rate (min./max.):
Water: 0.025 / 1 L/min
Overview
Purge meter model KPM is designed for industrial water purging applications and to withstand contaminated water. The KPM comes with a built-in flow tube cleaner and the strong and compact design ensures maximum resistance to external impact. Reliable flow measurement is based on a variable area metering principle using a free-floating float.
Technical Data | |
Body material | POM (PVDF optional material, code "K") |
Metering tube | Polysulfone (PSU) |
Metallic parts | AISI 316, float AISI 329 |
O-ring seals | Viton® |
Max. pressure | 20 bar |
Min. temperature | -20°C |
Max. temperature | +100°C |
Connections | Female threads or compression fittings for straight tube |
Weight | 1,2 kg incl. package |
